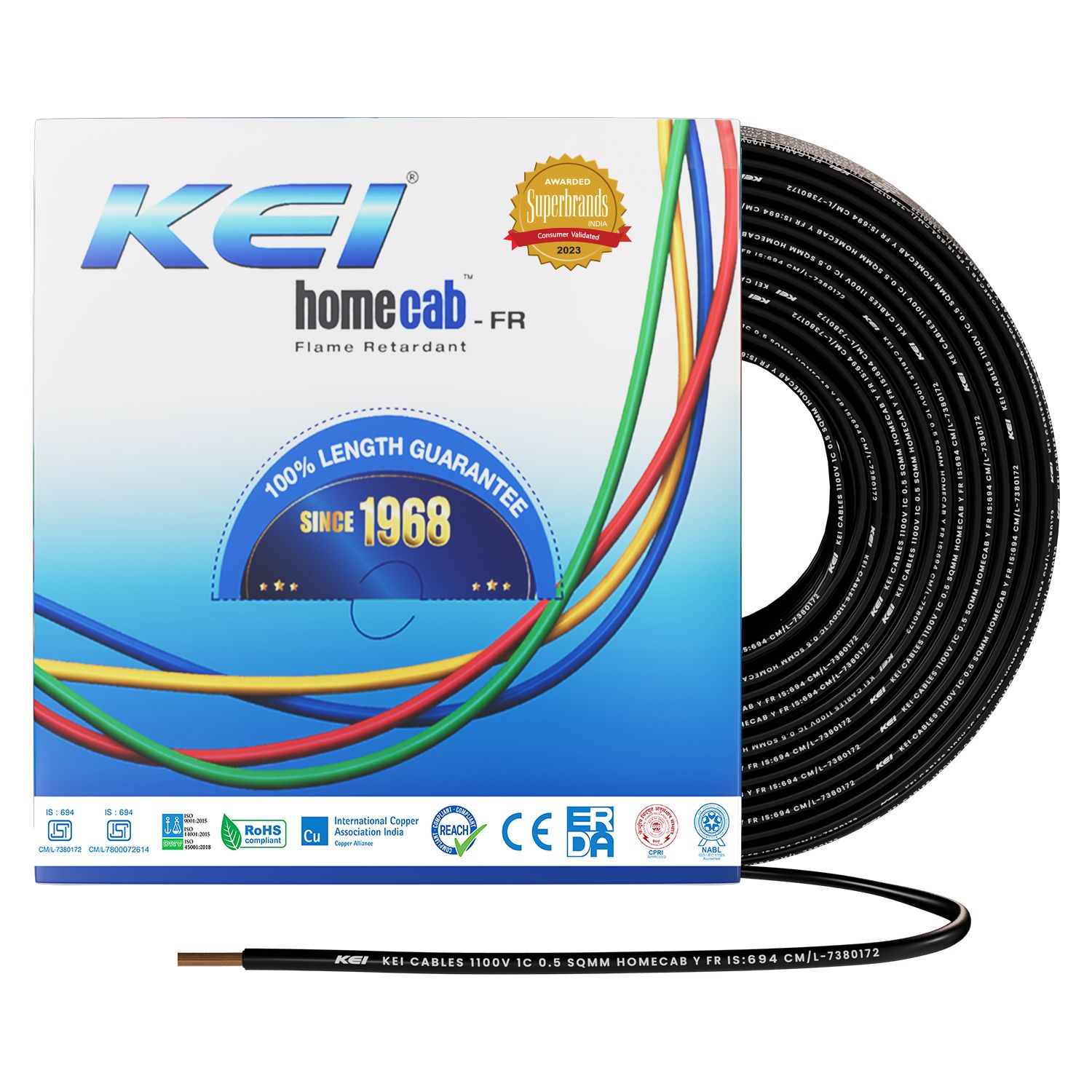

HomeCab is a multi-stranded flexible wire with flame retardant properties. It has specially formulated insulation with a high oxygen and Lead Free & temperature index, enabling the wire to withstand overloads preventing electric mishaps. So, give yourself the promise of security and supreme quality. Get KEI house wires and safeguard your home for life.
| Nominal Cross Sectional Area of Conductor(SQ. MM) | Number/Nominal Dia of Wires [Nom.] | Thickness of Insulation [Nom.] (mm) | Overall Diameter Max. (mm) | Current Rating (amps) | Ohm/km | |
|---|---|---|---|---|---|---|
| Clipped Direct/Cable Tray | Conduit/Trunking | |||||
| 0.5 | 16/0.2 | 0.6 | 2.6 | 4 | 4 | 39.0 |
| 0.75 | 24/0.2 | 0.6 | 2.8 | 7 | 8 | 26.0 |
| 1.00 | 32/0.2 | 0.6 | 3.0 | 12 | 13 | 19.5 |
| 1.50 | 30/0.25 | 0.6 | 3.4 | 14 | 17 | 13.3 |
| 2.50 | 50/0.25 | 0.7 | 4.1 | 19 | 23 | 7.98 |
| 4.00 | 56/0.3 | 0.8 | 4.8 | 25 | 31 | 4.95 |
| 6.00 | 84/0.3 | 0.8 | 5.3 | 33 | 39 | 3.30 |
*The number & diameter of conductor strands are for reference only and governed by conductor resistance.
*The above data is indicative only and may be revised without prior information. KEI will not be responsible for any damages arising out of incorrect application of its product.
